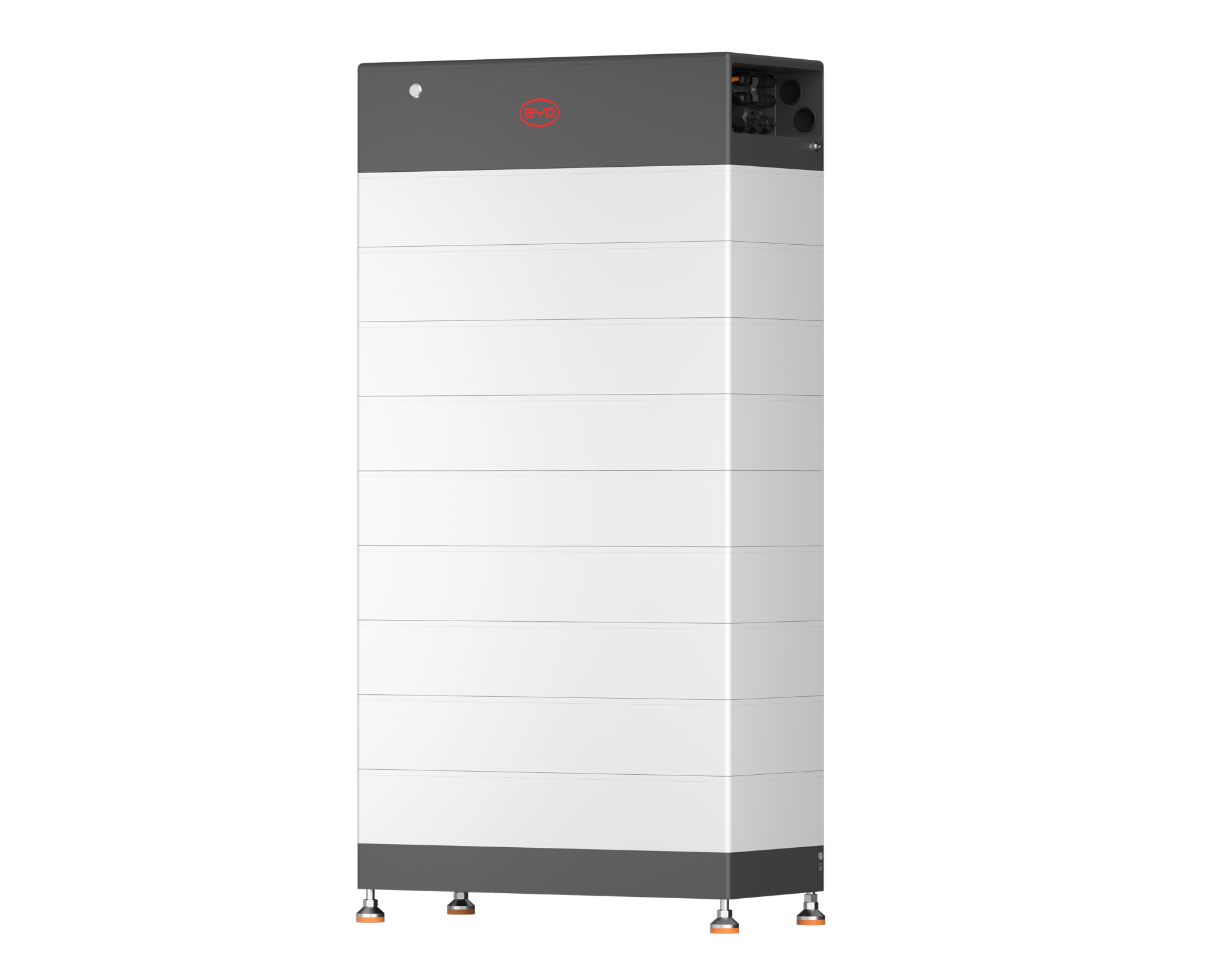

Battery–Box HVB

Battery-Box HVB residential energy storage system is BYD Energy Storage's first residential system to adopt BYD Blade Battery. It pioneers the application of automotive-grade CTP (Cell-to-Pack) battery structure in residential energy storage, offering exceptional advantages such as ultra-high output power, flexible modular stacking, single-person installation capability, worry-free capacity expansion, and smart configuration.

• Model: Battery-Box HVB
• Usable Energy: 5.94 - 29.69 kWh
• Maximum Capacity: 89.07kWh
• Dimension (H/W/D): 479 x 610 x 282 mm (2 modules)
• Weight: 68.7kg - 287.1kg
• Installation Mode: Floor installation
• Applications: On Grid / On Grid + Backup / Off Grid

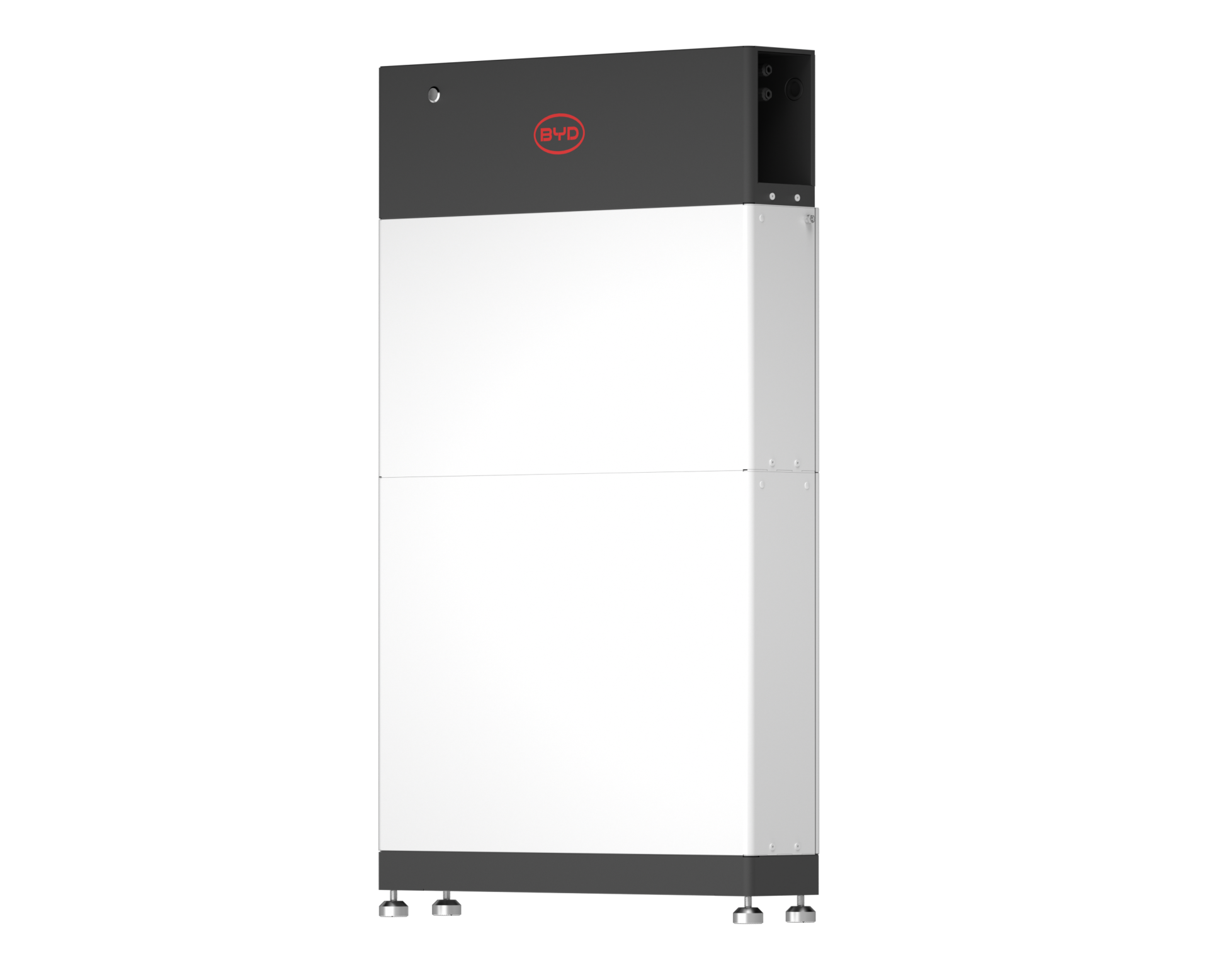

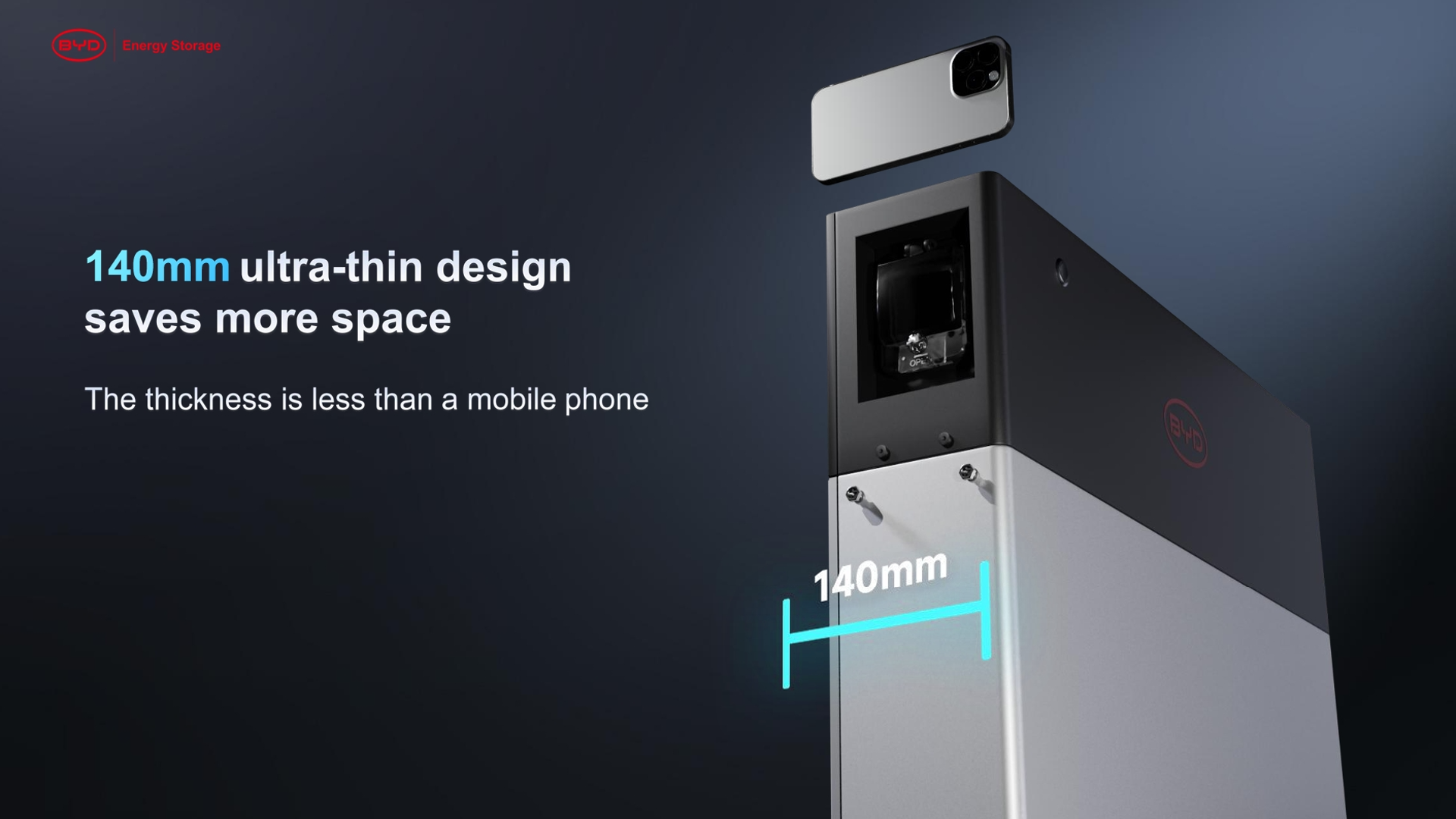

Battery–Box HVE

The HVE home energy storage solution, when paired with BYD inverters, integrates the advantages of flexible combination of different power modules, worry-free expansion, and one-click adaptation.

• Model: Battery-Box HVE
• Usable Energy: 6.43 - 15.01 kWh
• Maximum Capacity: 70.74 kWh
• Dimension (H/W/D): 794 x 660 x 140 mm (1 module)
• Weight: 72.1kg - 157.3
• Installation Mode: Floor Stand (standard) / Wall Mount (optional)
• Applications: On Grid / On Grid + Backup / Off Grid

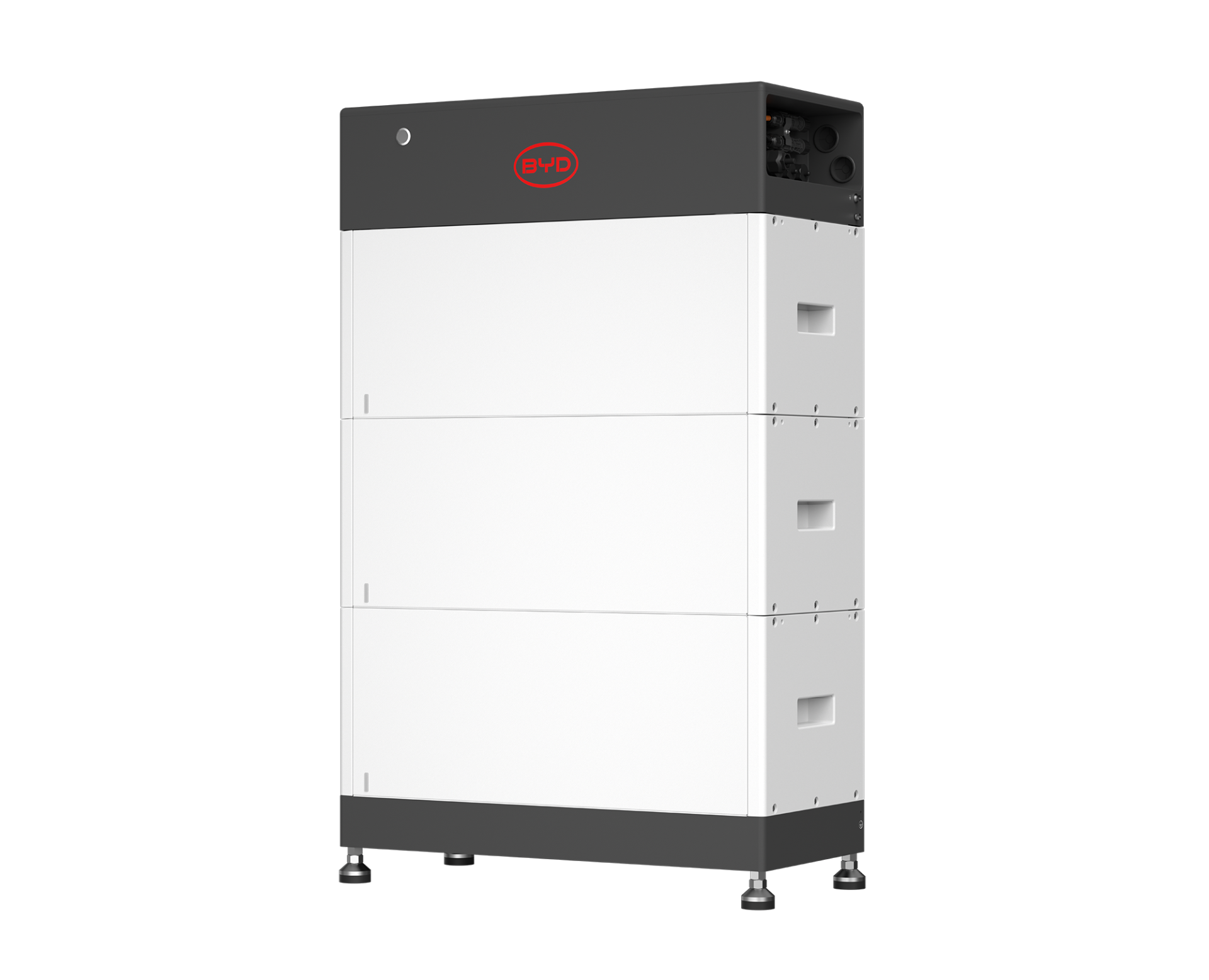

Battery–Box HVS+

The HVS+ high-voltage residential energy storage battery system offers 2.56 kWh usable capacity per pack, with system capacity flexibly expandable from 5.12 kWh to 38.4 kWh to meet the demands of different scenarios of electricity consumption. HVS+ is compatible with a variety of leading high-voltage single-phase and three-phase inverters, to provide users with energy solutions for the home storage system.

• Model: Battery-Box HVS+
• Usable Energy: 5.12 - 12.8 kWh
• Maximum Capacity: 37.4 kWh
• Dimension (H/W/D): 747 x 610 x 282 mm (2 modules)
• Weight: 91.1kg - 206.6kg
• Installation Mode: Floor stand
• Applications: On Grid / On Grid + Backup / Off Grid

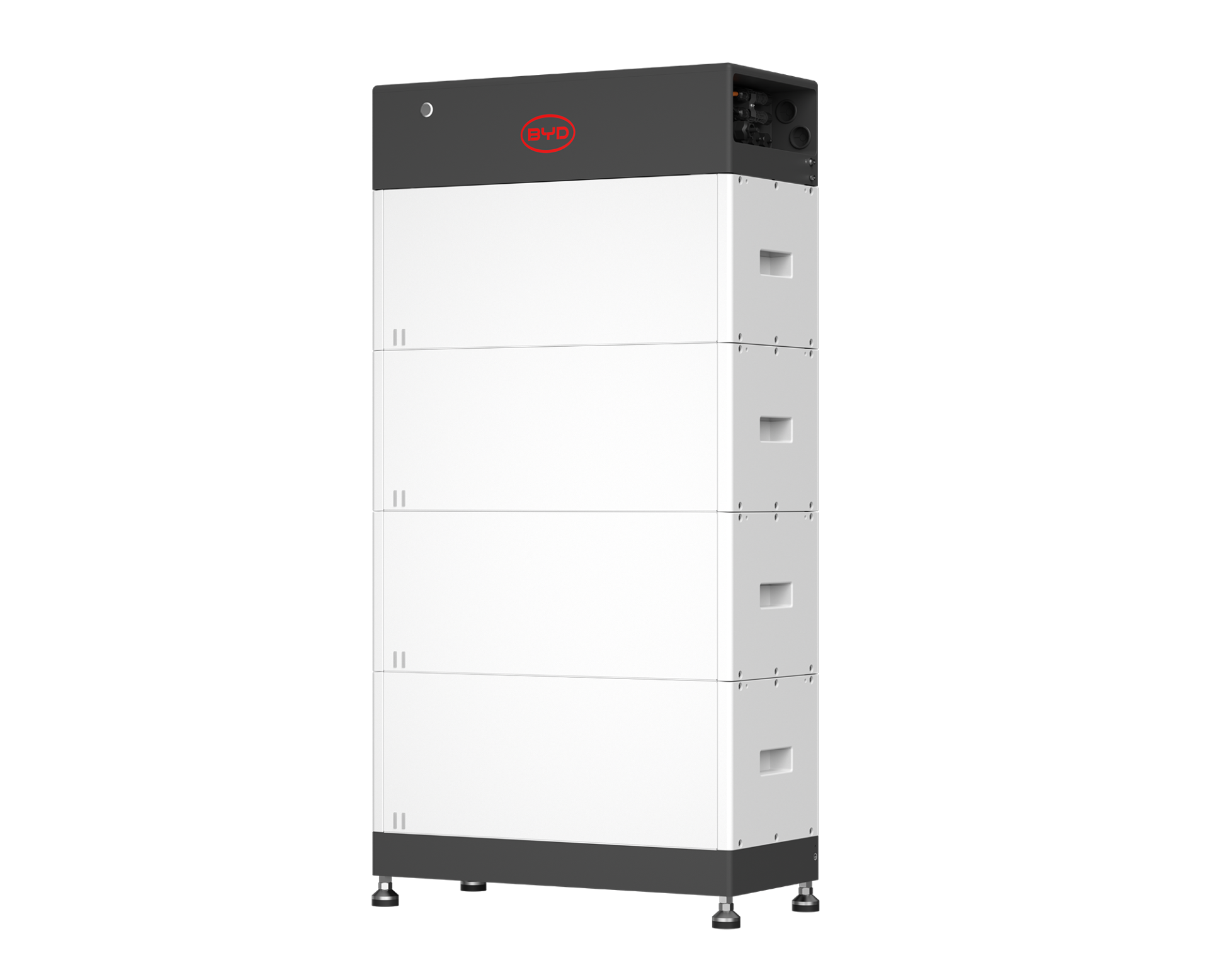

Battery–Box HVM+

The HVM+ high-voltage residential energy storage battery system offers 2.76 kWh usable capacity per pack, with system capacity flexibly expandable from 8.28 kWh to 66.2 kWh to meet the demands of different scenarios of electricity consumption. HVM+ is compatible with a variety of leading high-voltage single-phase and three-phase inverters, to provide users with energy solutions for the home storage system.

• Model: Battery-Box HVM+
• Usable Energy: 8.28 kWh (3 modules)
• Maximum Capacity: 66.2 kWh
• Dimension (H/W/D): 987 x 610 x 282 mm (3 modules)
• Weight: 138.3kg - 345.3kg
• Installation Mode: Floor stand
• Applications: On Grid / On Grid + Backup / Off Grid

Solar Panel Auro NLBK-36

• Module Type: 600w.
• Module Efficiency: 23.23%.
• Product Warranty: 12 years.
• Linear Power Warranty: 30 years.
• High conversion efficiency: Module efficiency increases to 23.23%.
• SMBB Technology: 16BB has better light trapping and current collection to improve module power output.
• Bifacial power generation: Both sides absorb sunlight to generate power 5%-32% power generation gain.
• PID Resistance: Excellent Anti-PID Performance guarantee via optimised production technology and materials control.
• Excellent low-light performance: Better low-light power generation performance in low radiation environments such as hazy and cloudy days.
• Low temperature coefficient: Peak power temperature coefficient -0.278%/C. Excellent power generation performance in high
  temperature environment.
• Excellent power generation performance: Better low-light power generation performance in low radiation environments such as haze and cloudy days.
• Zero LID: Excellent antidegradation capability to achieve zero LID.
• LOW LOCE (Levelized Cost of Energy): Reduce the cost of BOS efficiently. Increase return on project investment.


Solar Panel Auro MLK-27

• Module Type: 415w.
• Module Efficiency: 21.25%.
• Product Warranty: 12 years.
• Linear Power Warranty: 25 years.
• High Conversion Efficiency: High efficiency Monocrystalline cell
  Module efficiency up to 21.25%.
• Gallium-doped Technology: Reduce LID by Gallium-doped process
  More power generation over the life cycle.
• Multi-Busbar Technology: Enhanced module current collection capability. Power output increased by 2.5%-3%.
• High-Density Encapsulation Technology: Through narrowing the cell spacing, the module efficiency is increased by 0.2%.
• Light Weight Design: Easy handling and saving in installation cost.
• Non-destructive Cutting: Application of advanced non-destructive cutting technology. Effectively reduce potential micro crack defects.
• PID Resistant: Optimise cell production technology and material control. Enhance PID Resistant performance, and reduce degradation.
• Low LCOE(Levelized Cost of Energy): The cost of BOS reduced by 1.48%, LCOE reduced by 1.27%.

Solar Panel Auro NLBK-27

• Module Type: 450w.
• Module Efficiency: 23.04%.
• Product Warranty: 12 years.
• Linear Power Warranty: 30 years.
• High conversion efficiency: Modules efficiency up to 23.04%.
• Zero LID: Excellent LID resistance performance achieving Zero LID.
• Excellent low-light performance: Better low-light power generation performance in low radiation environments such as hazy and cloudy days.
• Weather resistance: Excellent resistance to salt mist, dust and sand, ammonia corrosion and other harsh environments. Wider range of application.
• High compatibility: Excellent system compatibility and ability to adapt to mainstream inverters and trackers.
• Low LCOE: Significantly decrease BOS costs and improves return on investment.
• SMBB Technology: 16BB, better light trapping and current collection capability to improve module power output.
• Low temperature coefficient: Peak power temperature coefficient -0.30%/°C Excellent power generation performance in high temperature environments.


Solar Panel Auro MLK-36

• Module Type: 555w.
• Module Efficiency: 21.48%.
• Product Warranty: 12 years.
• Linear Power Warranty: 25 years.
• High power output: Using 182mm size Mono wafe Module power output up to 21 .48%.
• Gallium-doped Technology Reduce LID by Gallium-doped process More power generation over the life cycle.
• Multi-Busbar Technology: Enhanced module current collection capability Power output increased by 2.5%-3%.
• High-Density Encapsulation Technology: Through narrowing the cell spacing, the module efficiency is increased by 0.2%.
• Unique model: Unique design reduces shadow occlusion Decrease power loss and increase power generation.
• Low temperature coefficient: Peak power temperature coefficient -0.328%/'C Excellent power generation in high temperature environment.
• Higher mechanical load capacity: Adopt high-strength aluminum alloy frame Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load.
• Low LCOE(Levelized Cost of Energy): The cost of BOS reduced by 1 .48% LCOE reduced by 1 .27%.

Solar Panel Auro HSBK-33

• Module Type: 735w.
• Module Efficiency: 23.66%.
• Product Warranty: 12 years.
• Linear Power Warranty: 30 years.
• High conversion efficiency: Modules efficiency up to 23.66%.
• HJT Technology: Double-sided uc-Si technology to ensure higher cell efficiency and module power, effectively reducing LCOE.
• Ultra-low Temperature Coefficient: -0.24%/ C Pmax temperature coefficient to ensure lower power loss in high temperature
  environments.
• Polyisobutylene (PIB) Sealant: Stronger water resistance, better airtightness, and longer module lifespan.
• Higher Reliability: Industry-leading technology and performance
  warranty to ensure modules' outstanding and
  stable performance.
• Better Power Generation Performance: Zero LID and PID for lower power loss.
• Up to 95% Bifaciality: Natural symmetrical bifacial structure to bring higher power generation on the backside.
• SMBB Technology: 20BB has better light trapping and current collection to improve module power output.
• Low LOCE(Levelized Cost of Energy): Reduce the cost of BOS efficiently and increase return on project investment.


Solar Panel Auro NLBK-39

• Module Type: 650w.
• Module Efficiency: 23.25%.
• Product Warranty: 12 years.
• Linear Power Warranty: 30 years.
• High conversion efficiency: Module efficiency up to 23.25%.
• Zero LID: Excellent LID resistance performance, achieving Zero LID.
• Excellent low-light performance: Better low-light power generation performance in low radiation environment,s such as hazy and cloudy days.
• Bifacial power generation: Both sides absorb sunlight to generate power 5%-32% power generation gain.
• PID Resistance: Excellent Anti-PID Performance guarantee via optimised production technology and materials control
• Low LCOE: Significantly decreases BOS costs and improves return on investment.
• SMBB Technology: 16BB, better light trapping and current collection capability to improve module power output.
• Low temperature coefficient: Peak power temperature coefficient -0.278%/°C. Excellent power generation performance in high-temperature environments.
